Activating the Periphery.
An Aquatic Centre in Milan, Italy
​
Masters Second Year, 2017/2018
Design Instructor: Paolo Debiaggi
Team: Christopher Taylor, Alice Huang
Activating the Periphery.
An Aquatic Centre in Milan, Italy
​
Masters Second Year, 2017/2018
Design Instructor: Paolo Debiaggi
Team: Christopher Taylor, Alice Huang
Pantomime.
A Puppetry Arts Center in Stara Zagora, Bulgaria
Stara Zagora State Puppet Theatre Architecture Competition, 2023
Team within OXX: Christopher Taylor
The proposal looks to the first puppet show performed in 5th Century BC, Greece, for inspiration. The word ‘Pantomime’ originates from the Greek word ‘Pantomimos’ meaning ‘Imitator of All.’ The initial strategy takes the existing theatre’s basic plan and duplicates it on the western boundary. Through imitation, the new building is seen as a puppet of the original theatre - not identical but theatrically exaggerated.
Its placement to the west creates an open space between the old and new and forms a courtyard for open-air performances. Existing trees along the south of the site are moved into this courtyard, providing shade and greenery. A flat concrete roof is wedged between the volumes at a 3m height. This helps to frame the courtyard, provide a cafe volume to enter into, and allows views towards the courtyard trees, sparking curiosity in passers-by.
A series of columns and steel trusses allow for flexible performance arrangements below and provide a regular rhythm expressed on the exterior facade. Using white aluminium panels as cladding, the form represents a tent-like structure, reminiscent of a carnival marquee draped over the wondrous performances beneath. The curved panels provide an interesting distorted backdrop for light and shadow to play. Shadows of trees dance as they sway in the wind referencing the most basic forms of puppet - the shadow puppet.
Corners are carved out to accommodate the inner program - a foyer and a gangway for technicians - further exaggerating the form’s draped marquee effect. The overhang created along the street side also references the Bulgarian National Revival period where homes’ upper floors would overhang the street below, providing shade and a social gathering space.
A dimple in the north facade offers a minimal imitation of the old theatre’s performative clock. The dimple allows light and shadow to represent the passage of time, forever changing, forever performing - a conceptual nod to the past and future of the puppetry arts.

- Perspective -
​
Street view of the theatre. The curved facade folds inwards to give back to the public space and provide a sheltered walkway and seating along the street pavement.

- Site Plan -​​

1. New theatre placed on western boundary allowing for shared space between existing and new.

2. Trees along southern boundary moved to new courtyard space.

3. Low-rise cafe volume serves as entrance threshold between street & courtyard.

4. Low-rise roof allows views over towards courtyard trees and sparks curiosity.
- Floor Plans -​​

1. Internal frame structure used to allow flexible use of theatre space.

2. Facade envelope draped over frame structure, creating a curtain-like appearance.

3. The form is pushed and pulled to suit the internal program.

4. Low roof wedged between existing & new theatres and frames the new courtyard.

- Perspective -
​
View from within the courtyard that can host additional performances.

- West Elevation -​

- North Elevation -​

-
White Aluminium Panel Cladding Creating Tent-Like Appearance
-
Acoustic and Thermal Insulation
-
Lower Concrete Flat Roof Framing Courtyard
-
Stone Wall Structure
-
Concrete Columns & Steel Trusses Allowing Flexibility Below
-
Raised Gangway for Technicians
-
Stage and Retractable Seating
- Exploded Axonometric -​

- Perspective -
​
View of the main circulation space that can hold additional seating when necessary. The space showcases the drape-like curves of the roof above.

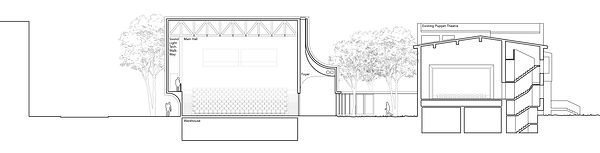

- Section AA -​

- Section BB -​

- Section CC -​
